AEM EVAir Temp Sensor Kit, MetriPack Connector - -40 Deg F to 212 Deg F, 3/8-in NPT

-20C to 150C / -4F to 302F - 3/8" NPT - Connector Kit and Pins

AEM's Air Inlet Temperature Sensor Kits (AIT) senses the air temperature on the inlet side of the engine.

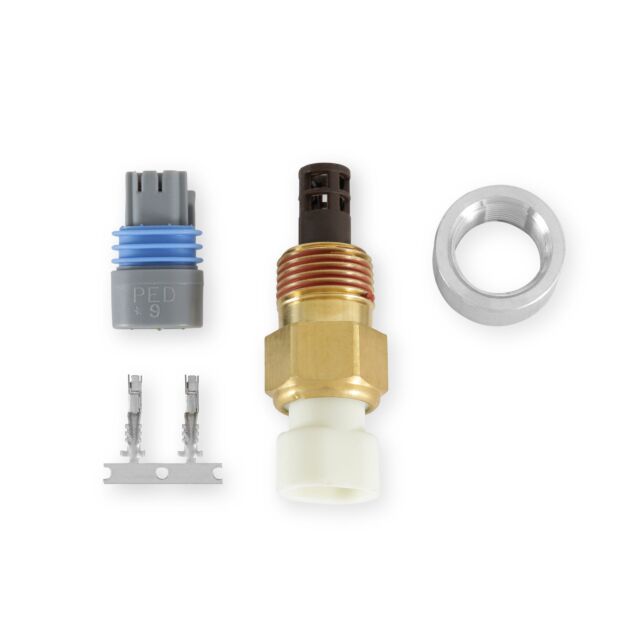

Air Temp Sensor Kit. 3/8"NPT. Includes: Air Temp Sensor, 3/8"NPT Aluminum Bung, Connector & Pins

30-2010 - Air Temp Sensor Kit

Accuracy: < 1.5C / 2.7F

Operating Temp: -40C to 135C / -40F to 275F

Resistive Range (?): See Table

Thermal Time Constant: < 15 sec. The time required for the sensor to achieve 63.2% of its steady state value when subjected to a step change in ambient temperature [Tc=(Tf-Ti)*63.2%+Ti]. Test medium: silicone oil

Sensor Body Material: Brass

Thread: 3/8" NPT

Hex Size: 3/4"

Installation Torque: 20Nm / 15 ft-lbs

Weight: 33.3g

Electrical Termination: Weatherproof connector. Includes Mating Connector, Pins & Wire Seals

Includes: Air Temp Sensor, 3/8" NPT Alumium Bung, Mating Connector, Pins & Wire Seals

Features:

• Senses the air temperature on the inlet side of the engine
• Weatherproof connector
• Connector and pins included
• Temp scale of -20C to 150C / -4F to 302F
